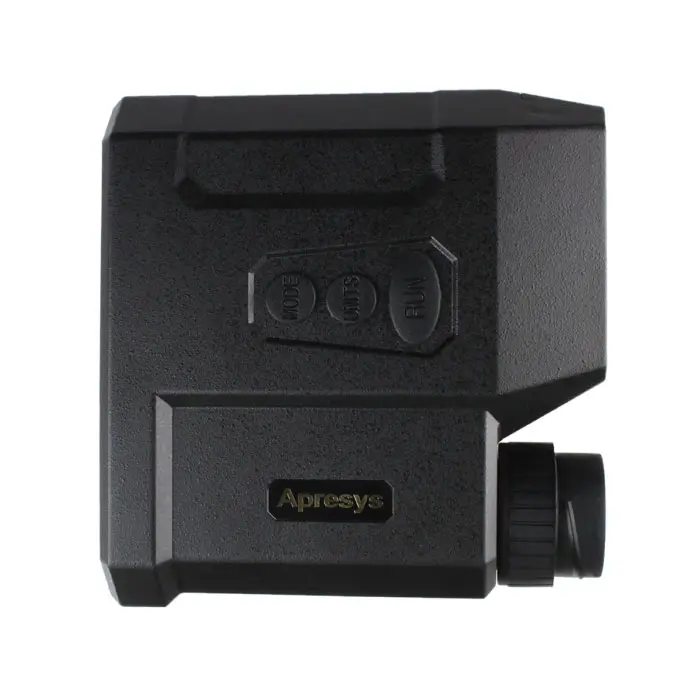

Apresys Pro1500/2000

The American Apresys Pro series laser ranging telescope combines the functions of a telescope and a laser rangefinder, with a long measurement distance and a variety of measurement functions, making professional measurement users more handy. American Apresys uses eye-safe low-power lasers to prevent unnecessary eye damage and maintain high-quality measurement accuracy. Quickly switch code (Y)/meter (M)/foot (Ft) units, and can store and view 40 sets of measurement data. The waterproof level of the whole machine is IP54, which can be easily dealt with even in rainy days and splashing water (but not immersed in water). Suitable for wildlife observation, golf, outdoor hunting, engineering surveying.

. 5~1500 yards / 5~1500m
. Yards/meters/feet Unit switching
. Over100M Near Object Ignore
. Automatic Rain Sensing Mode
. SCAN automatic tracking
. Tilt angle measurement
. Horizontal/Vertical Distance Conversion
. 40 sets of data can be stored
. IP54 water-repellent design


Switching between three measurement units
You can switch between Y (yard), M (meter), and Ft (foot) with one key to quickly obtain data and improve the efficiency of measurement operations. Data can be output by 5 pin mini-USB terminal to RS232. (There is no wire attached to this product)

Rain
When the weather conditions are poor or the humidity of the ring mirror is high, it will automatically switch to the rainy sensing mode to reduce the influence of weather factors on the measurement.

Over 100M mode
When conducting laser ranging outdoors, obstacles on the path will affect the measurement results. In this mode, when measuring targets over 100M, close obstacles (such as wires, branches, etc.) within 100M can be ignored in order to accurately capture distant targets.

Angle
The built-in inclinometer measuring device can automatically calculate the lifting angle of 140° (70°~-70°) when measuring the distance, and can switch to Horizontal Distance mode and Vertical Distance mode. , to meet most of the ranging needs.

SCAN
General laser ranging telescopes can only do a single measurement. When measuring moving objects, you need to repeatedly press the measurement button, which is easy to lose the target. Just press and hold to quickly scan to obtain readings. It is also suitable for measuring the target object. Surrounding distance.

Eye-safe  low power laser
Reduce the laser power to prevent eye damage caused by accidental use, and at the same time have accurate measurement accuracy.

IP54 Waterproof and dustproof grade
To a certain extent, it can prevent dust and powder from entering from different directions, and prevent water droplets from different directions. Although it is not completely waterproof, it can avoid the infiltration of sudden rain and splashing water.

Multi-Coated
The lens coating can reduce the loss caused by the reflection of light in the sky, so as to increase the brightness and contrast of the image, thereby reducing eye fatigue. "Multi-Coated" means that the inner lens group is coated with several layers of coating on the surface of the lens, and the imaging performance will be better than fully-coated.

Diopter adjustment ring
The eyepiece adjustment ring combined with the focusing wheel and diopter adjustment can adjust the diopter of the eyepiece, as if wearing glasses, so that you can see far and near directly without adjusting the focal length.

NOTICE
1. When wiping, please gently wipe with a soft cloth or lens paper to remove the dust. If you wipe in a circle, it may cause damage to the lens.
2. In order to avoid the lens assembly inside the telescope from shifting, please do not drop or impact it.
3. To avoid damage to your eyesight, do not look directly at the sun.





產品規格

放大倍率

8倍

物鏡口徑

25mm

射出瞳徑

3.1mm

良視距離

13.5mm

視野角度

8.1°

視野範圍

140mm @ 1000m

鏡片鍍膜

Multi-Coated 多層鍍膜

目  鏡

可調整屈光

測量範圍

5-1500碼 / 5-1500公尺 / 5-1500英呎

精度 ±0.1碼 / 公尺 / 英呎



誤差 ±1碼 / 公尺 / 英呎



測量模式

直線距離、自動追瞄、傾斜角度測量、水平距離換算、垂直距離換算

斜測範圍

±70°

精度 ±0.1°



防水等級

IP54

腳 架 孔

O

資料輸出

mini USB to RS232(無附線材)

使用電池

方型 (9V)電池*1 (無內附電池)

機身尺寸

長121x寬127x厚52mm

重  量

472g

產品保固

一年

附  件

攜行背袋、拭鏡布、頸部掛繩、使用說明書、原廠保證卡

產  地

美國設計,授權中國大陸生產
